KV®

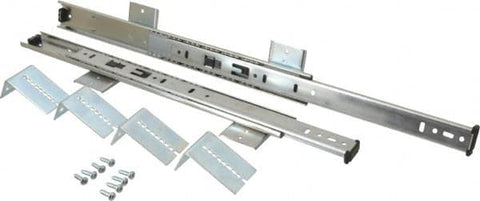

8250 3/4-Extension Variable-Height Pencil/Center Drawer Slide
$0.00
75 lb class 3/4 extension variable height keyboard slide features an anti-rebound stay-close design that holds the pencil drawer in closed position. Mounting brackets adjust to 7 different heights and can be reversed for in-board and out-board mounting. The track member quickly disconnects using positive lever releases. Features an overall drop height from 2-11/32" to 3-11/16".
Document Downloads
Specs
| Primary Size | 12" |
| Family | 8250 Series Variable Height Pencil or Center Drawer Slides |
| Brand | KV® |
| Slide Class | Pencil/Keyboard Drawer |
| Load Class | 75 lb |
| Open Close Features | Hold-In Anti Rebound |
| Base Material | Steel |
| Disconnect | Lever Release |
| Bearing Type | Steel Ball Bearing |
| Load Capacity | 75 lb |
| Product Features |
|
| Ecommerce | Inactive |
