KV®

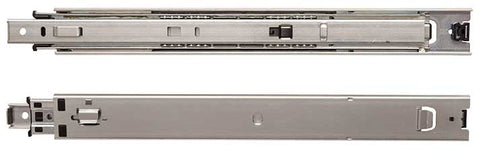

8420 Full Extension Metal Cabinet Drawer Slide
$0.00
8420 Medium-Duty Full Extension Ball-Bearing Slide engineered for smooth, stable drawer operation and long-term durability. Features a 100 lb load rating, hold-in anti-rebound mechanism to keep drawers securely closed, and a lever-release disconnect for easy drawer removal. Designed for side-mount installation, this precision steel slide includes a corrosion-resistant Anochrome finish and supports recommended drawer widths up to 24 in. Available in lengths from 14 in. to 28 in.
Document Downloads
Specs
| Primary Size | 14" |
| Family | 8420 Series Medium-Duty Drawer Slides |
| Brand | KV® |
| Slide Class | Medium-Duty |
| Load Class | 100 lb |
| Slide Width | .50"/12.7mm |
| Slide Height | 1.79"/45.5mm |
| Open Close Features | Hold-In Anti Rebound |
| Base Material | Steel |
| Disconnect | Lever Release |
| Bearing Type | Steel Ball Bearing |
| Load Capacity | 100 lb |
| Product Features |
|
